Lambada UFM11 / UFM13 / UFM15
Lambada ultralights offers excellent performance and safety
About Lambada Ultralight
UFM 13 Lambada was designed in consideration of maximal safety, excellent performance and operation economy. The type has been certified for the UL category. The ultra-light aircraft UFM 11 and UFM 13 Lambada is a double-seat, single-engine, mid-wing aeroplane with crew members sitting one next to each other. It is produced in two versions of different span and wing surface.The plane is all-composite. The UFM 11 wing is equipped with a lifting flap with a slot (the same version as in case of Samba). The UFM 13 wing is equipped with a flaperon - a small wing fulfilling the function of lifting flap and deflecting in 5°, 9° and 16° positions. VOP is of the T-shape. The carriage is three-wheel with controlled front wheel or two-wheeled with controlled tail. The min wheels are braked.
The main carriage leg consists of a laminate spring. The UFM 13 Lambada may be equipped with removable wing extensions. The extensions increase the spread, slimness and performance of the plane. For greatest performance, you will undoubtedly use the possibility of span extension up to 15 m.
Technical description
Price
LAMBADA UFM13 with Rotax 912 UL (80 HP) - 53.900 EUR/EXW (netto)
Certificates
|
|
|
 |
|
 |
| France I |
France II |
France III |
Germany I |
Germany II |
Czech Republic |
| Technical specification |
| Wingspan UFM 11 |
11.90 m |
| Wingspan UFM 13 |
13.00 m |
| Wingspan UFM 15 |
15.00 m |
| Width |
6.60 m |
| Height |
1.95 m |
| Cockpit width |
1.06 m |
| Wingarea UFM 11 |
11.70 m2 |
| Wingarea UFM 13 |
12.16 m2 |
| Wingarea UFM 15 |
12.90 m2 |
| Empty weight |
265.0 kg |
| MTOW |
472.5 kg |
| Min. speed |
63 km/h |
| Cruising speed |
150 km/h |
| Max. speed |
200 km/h |
| Climbing solo UFM 13 |
3.5 m/s |
| Climbing solo UFM 15 |
7.0 m/s |
| Climbing solo MTOW UFM 13 |
2.5 m/s |
| Climbing solo MTOW UFM 15 |
5.0 m/s |
| Flying range |
1500 km |
| Glider ratio UFM 11/13 |
26 |
| Glider ratio UFM 15 |
30 |
| Fuel tank |
1 or 2x50 l |
| Seats |
2 |
| Min. sink rate |
1.1 m/s |
Gallery
Fourth Lambada 13/15 in Poland (June 2006) |
|
|
|
|
|
Photo. Andrzej Rutkowski / Przegląd Lotniczy - Aviation Revue (PL) |
First Lambada 13/15 in Poland |
|
|
|
|
|

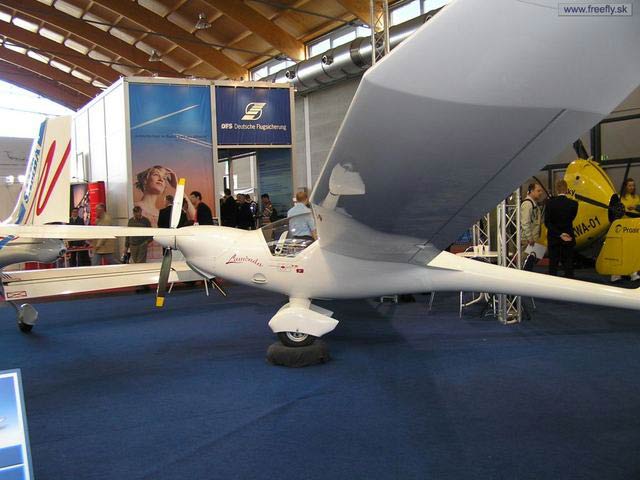

Lambada at
AERO 2005 Friedrichshaven (Germany) |
|
|
|
|
|
UFM Lambada 11/13/15 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Open transportation lorry for Lambada |
|
|
|
|
|
Container transportation lorry for Lambada |
|
|
|
|
|
|
|
